CS-424, Spring, 2007
Final Competition: RoboSoccerBU

RoboSoccerBU is a game for two robots. Each lab team must design, build, program,
and test a robot, which will compete against each robot designed by every other
team. The point of the game is to score as many points as possible. The robot
with the highest score at the end of the game wins that game. During game play
one robot is on "offense" and the other is on "defense". Only the offensive robot
can score by moving into a "goal" area at the far end of the playing field. The
other robot is on "defense" and tries to prevent the offensive robot from scoring
by bumping it with one of its front bumpers. If that happens, the robots change
roles, with the offensive robot going on defense and the defensive robot going on
offense. The robots will then be separated and restarted.

Determining defensive and offensive robots (Pre-game):

The end of the playing field opposite to the goal end is divided into two equal-
sized gray areas bounded by white (the "Pre-game Find" areas. At the start of each
new game and also after a point is scored by either robot, each robot is placed at
one corner of one of the two rectangular areas. A small black piece of paper
representing the soccer ball is placed at a random position in each rectangular
area by the referee. The robots are started simultaneously and the one that finds
its "ball" first becomes the offensive player; the other robot becomes the
defensive player. The offensive player must play a happy song (whatever song you
like) and "notify" the defensive player that it has captured its ball by sending
out IR message number 1 and stop movement. After that message is sent and received,

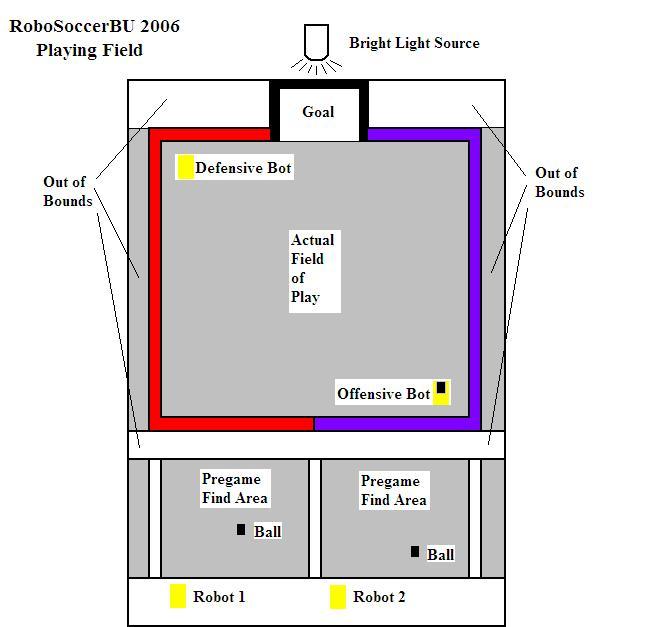

the robots will be placed on the playing field (as shown in the diagram of the
playing field shown below), started, and begin their scoring strategy or defensive
strategy.


A game:

A game will continue until a total of 3 minutes have elapsed. After a point is
scored by the offensive robot, the robots will be returned to the "Pre-game Find"
area to once again determine which will be on offense and which on defense for the
next round of the game. The winner of a game will be the robot that has accumulated
the most points after the 3 minutes.


The Playing Field:

The playing field is divided into two parts: the actual field of play and the
smaller "Pre-game Find" area in which the robots determine which will be on defense
and which is on offense for the next round. (See the following diagram.) The actual
field of play has out of bounds areas on either side and alongside the goal area.
These are bounded by lines of different colors. If the offensive robot goes out of
bounds, it must come back in bounds within 5 seconds or both robots will be stopped
and the roles of offense and defense will be interchanged. At the end of the actual
field of play is the goal, painted white and delineated by three black lines.
Immediately behind the goal there will be a strong source of white light that can
be "seen" from anywhere on the field.




Robot specifications:

No robot is to exceed 10 inches in any dimension (width, height, length).

A robot can use as many sensors as desired (if you can find ways of hooking them
all up to the three sensor ports on the RCX). Remember that your robot is
responsible for color recognition, direction recognition, touch detection, and IR
message recognition.

A robot may not have more than three motors.

A robot must have one or two front bumpers at least 2 Lego units high and cover
the area in between its treads/wheels. Additionally the bumper may not begin more
than 3 inches above the ground.

You may write separate programs for the "find ball", offensive, and defensive
strategies; but be aware of the program size limitations of the RCX.

You may not make structural/hardware changes to your robot during possession
changes or at any other point during a game.

No damaging or light-emitting foreign objects may be added to the robot. The
referees reserve the right to deny objects which they feel may be dangerous or
inappropriate.

With the exception of the "tagged" message (# 2) emitted by the defensive robot if
and when it tags the offensive robot and periodic "proximity messages" emitted by
the offensive robot (see below) your robot may not emit firmware or other harmful
IR signals during any part of the game.


The Offensive Robot:

The offensive robot is responsible for finding the goal and moving into it. It
scores a goal any time it enters the goal area. Then it has 5 seconds to stop
movement inside the goal and play an ascending tone notifying everyone that it
knows it scored a goal. If it does not play the sound within 5 seconds, the team
does not get a point and possession changes

It should try to avoid being tagged by the defensive robot (perhaps by emitting
and detecting periodic IR messages as in the example of the "Proximity Sensor"
given in class and trying to back away when the separation is too small). You may
NOT use Message numbers 1, 2, or 3 to do this.)

It should avoid going out of bounds; if it does so and does not get back in bounds
within 5 seconds or if it bumps into any of the walls of the playing field, both
robots will be stopped and the roles of offense and defense will be interchanged.

If its front bumper or bumpers are activated by the defending robot tagging it
(bumping into one of its front bumpers), it must play a short "sad song" (whatever
song you wish) and stop within three seconds of the collision. Possession of the
ball then changes and the robots are separated and restarted.

If it receives IR Message number 2 (emitted by the defensive robot when it tags
the offensive robot), it must also play the sad song and stop within three seconds.
Before a game starts, the offensive robot must pass a "test" in which it shows that
is capable of doing this.


The Defensive Robot:

The responsibility of the defensive robot is to prevent the offensive robot from
scoring by bumping into it with one of its front bumpers. Whenever that happens,
it must play a short "happy song" (whatever song you like), send out IR Message
number 2 (which should cause the other robot to stop), and finally stop itself.

If it bumps into a wall and mistakenly plays its sad song and sends out IR Message
number 2 (which is supposed to indicate that it tagged the offensive robot), it
will be penalized by having one point deducted from its score.

It is not permitted to enter and stay more than three seconds in the goal area. If
it does so, it will be penalized by having one point deducted from its score.

It is not allowed to cripple the other robot by ejecting objects into the playing
field or having parts that extend beyond its size specifications.


Stopping a game:

At any time the referee (TA) may determine that a game must be stopped. If that
happens he will have an RCX capable of continually sending out IR Message number 3.
Your program must ALWAYS respond to that message by stopping the robot.


Determining the winning team:

Each robot will play at least one game against every other robot. For each robot
we will tabulate total number of goals scored by that robot and the number of games
it won. The winner of a single game will be the robot that has scored the greatest
number of goals for that game. In the case of a tie there will be no winner of that
game. The final winner will be determined by a combination of most wins and most
goals scored during all of the games of the competition. In other words, each will
team be rated 6,5,4,3,2,1 in number of game victories and 6,5,4,3,2,1 based on total
number of goals accumulated in all games. Those two numbers for each team will be
added and the team that has the highest sum is the winner.


Grading:

In order to receive a satisfactory grade in the competition, your robot must
demonstrate that it:

1. can find a light source and move in its general direction

2. will stop when its front bumper is activated

3. can emit and detect IR messages at the correct times

4. has a strategy for finding the black "ball"

5. can recognize and distinguish between the out-of-bounds lines, the playing area,
and the goal area

6. has an offensive strategy

7. has a defensive strategy

8. can recognize when it has entered the goal


Each team must submit a paper describing in detail the design of its robot. The paper
must be submitted by the Friday after the competition at noon. Diagrams (and/or
especially photographs) as well as source code listings are an essential part of the
paper. The paper must also describe the techniques and strategies it used for each of
the eight points given above. Each member of each team must also submit a numerical
peer evaluation of each other team member indicating how he/she thinks the other
members of the team have contributed to the overall effort and success of the team.
The following is how the project grade will be determined:

The paper................................................................. 30%
Performance during the competition (professor/TA evaluation
of how well the robot performed the eight requirements)................... 25%
Final score in the competition.............................................20%
Team member peer evaluations...............................................25%
