Three-dimensional Computation Visualization for Computer Graphics Rendering Algorithms

David A. Goldman

Richard R. Eckert

Maxine S. Cohen

State University of New York at Binghamton

ABSTRACT

Computation visualization or algorithm animation is becoming an increasingly popular and effective way of teaching, debugging, and analyzing algorithms. Over the past ten years, many algorithm animation systems have been produced. Proposed here is a new approach and framework for visualizing three-dimensional algorithms or computations. Implemented on a prototype algorithm animation system under development here, this framework, termed the vector-guided view, produces insightful visualizations of three-dimensional computation by effectively conquering the problems of 3-D scene navigation. The creation of this framework was motivated by the desire to produce visualizations of an increasingly large and complex set of rendering algorithms now ubiquitous within the field of computer graphics. To show the potential of this framework, a dynamic visualization of a recursive ray-tracing program has been created here. A brief summary of the algorithm animation system being utilized is also presented. In the future, it is hoped that this work may be used to animate a large variety of programs, even beyond the scope of computer graphics algorithms.

Key Words and Phrases: algorithm animation, program visualization, computation visualization, simulation, three-dimensional, rendering algorithms, ray tracing, scene navigation, computer science education.


  1. INTRODUCTION


    2. Presented in this paper are techniques for visualizing and animating three-dimensional graphics rendering algorithms. In particular, a method for visualizing three-dimensional computations in general will be given. This work may also be used to increase the effectiveness of animations of simple 2-D computations or have applications within certain areas of scientific data visualization. However, this is not focused on here. To illustrate the usefulness of the techniques presented, a recursive ray tracing has been animated using a prototype algorithm animation system incorporating these new methods. The resulting animation, while being a valuable tool by itself, is most important in that it shows the potential of this approach to three-dimensional computation visualization. Finally, since the methods devised here to animate 3-D rendering algorithms (and 3-D computations in general) are a superset of the methods used to animate many other types of algorithms, it is hoped that this work may be incorporated into existing general purpose systems yielding more flexible and robust algorithm animation platforms.

    Over the past ten years, algorithm animation has proven to be a very useful tool for both educators and researchers alike. Its power to convey detailed information about algorithms quickly and effectively has been demonstrated on countless occasions. Marc Brown and Robert Sedgewick's pioneering BALSA system [10], created over ten years ago, is still in use today. Since its introduction, many advances have been made in this field yielding other well-known systems such as AACE, ALADDIN, POLKA, and Zeus. [15, 18, 28, 6] All of these systems strive to use the capabilities of interactive multi-media and dynamic high-resolution graphics displays to illustrate and analyze how particular algorithms function. They accomplish this goal by first abstracting the fundamental operations occurring within an algorithm and then by symbolically representing those operations (via audio or video) as a dynamic interactive presentation. [25] This, in fact, is the basic premise on which algorithm animation is based.

    Here, we were interested in applying this technology to visualize three-dimensional rendering algorithms. More specifically, an effective way of quickly examining and comprehending the inner workings of an increasingly large and complex set of rendering algorithms was desired. Unfortunately, out of the many systems currently available, none was well suited to animate this subset of algorithms. As will later be discussed, this set of algorithms demands unique features from an algorithm animation system. The inadequacy of existing systems is partially due to the fact that research into the visualization of three-dimensional computations (or algorithms) in general is still in its infancy. Hurdles, such as three-dimensional scene navigation, have still not been overcome in previous work.

    Proposed here are techniques intended to solve some of these problems and create an environment better equipped to animate sophisticated rendering algorithms. Most significant here, will be the introduction of a new type of viewing framework which effectively illustrates three-dimensional computation by overcoming the inherent problem of three-dimensional scene navigation. This framework, termed here as the Vector-guided view, may eventually prove useful in animating a large variety of 3-D and 2-D computations even beyond the context of computer graphics algorithms. For now though, the techniques developed here will be presented within the context of animating the recursive ray tracing algorithm on a prototype algorithm animation system termed 3D-AAPE (3-Dimensional graphics Algorithm Animation Programming Environment). This system is currently being developed here at the Human-Computer Interaction lab at this university.

    Motivation: The value of this type of research to computer graphics is unmistakable and will hopefully have a great impact on how graphics algorithms are debugged, analyzed, and taught. Whether you teach undergraduate courses on basic rendering techniques or you are a pioneering researcher in this area, program visualization can be an invaluable tool. As Stasko keenly states, "Animated visualizations help researchers and designers debug programs and explore new variants of existing algorithms. The graphical views of a program illustrate behaviors and characteristics not evident during its initial design. Consequently, they promote the discovery of alternate solutions to problems." [25] With this and other goals in mind, a new approach to three-dimensional computation visualization will now be summarized. The following sections will first describe the problem context, and then define the conceptual model constructed. After this a brief discussion of implementation and future work will be given.



  2. PROBLEMS
The most significant problems that occur when creating animations of a rendering algorithm are problems that are inherent to most three-dimensional computation visualizations. A symbolic representation of a three-dimensional computation (for example, projecting a vector into a 3-D scene) usually necessitates a three-dimensional representation itself. If a computation involves a cube or sphere, symbolically representing those objects as a square or circle can be detrimental (at best) to the effectiveness of the visualization. However, displaying information in three-dimensions poses noteworthy problems. These problems stem from the obvious fact that when projecting three-dimensional information onto a two-dimensional view plane (i.e. a computer screen) information is lost. In the case of computation visualization, this loss can be categorized into three groups:
  1. Limited perception of movement - Depending on the user's viewpoint and the nature of the 3-D objects, it may be difficult (if not impossible) to see objects moving toward or away from the user (e.g. objects whose location or attribute change is parallel to the eye vector for the scene).
  2. 3-D object interference - An object may remain partially or completely hidden in the scene due to other objects (or parts of objects) located "in front" of it.
  3. View scale inadequacy - If the user is placed at viewpoints too close to or too distant from the 3-D scene representation, vital information (objects) may lie outside the viewing frustum or be so small that they go unnoticed by the user.
Problems of the first category can become even more apparent when displaying objects which are abstractions from an algorithm rather than models of real world items. Rendering abstracted objects such as vectors and line segments, which have no natural thickness, requires slightly different considerations. Also, the subjective nature of all three of these categories tends to cloud some of these problems further. In most situations, there is rarely a single magic number or "perfect" parameter that yields the best results. Finally, it must be remembered that the goal is to have an accurate visualization of a dynamic process (i.e. algorithm) available at a minimal cost to the user. At first glance, it may seem reasonable to simply add user controls which alter viewing parameters for the scene and allow the user to view the data (or computation) from any and all possible viewpoints. While this approach may in fact be well suited for viewing large amounts of static information, when that information becomes dynamic, as in the case of algorithmic computation, it becomes impractical. In that type of situation, the user would be required to search for an appropriate viewpoint every time the scene changed as the algorithm progressed. This is both time consuming and self-defeating since the user may not be able to determine an appropriate view point for the same three reasons listed above. Or, even worse, the user may find a viewpoint which he or she "believes" is appropriate and inadvertently miss other vital information. In addition, simply manipulating the viewpoint may not be enough to solve all three problem categories. For example, one might have rectified categories one and three, but still have objects obscuring the user's view. Thus, we are left with difficulties for which the most obvious solutions are of no avail.

Related Work: Recently, three-dimensional algorithm animation has finally started to draw some attention and research. Marc Brown and Marc Najork at Digital Equipment Corporation have used 3-D interactive graphics in their Zeus system to enhance the effectiveness of algorithms that are not inherently three-dimensional. They use this extra dimension to represent additional information about an algorithm, such as "capturing a history of a two-dimensional view". While the work presented in this paper has definite applications here, this is not its primary focus. With respect to scene navigation, Brown and Najork take the interactive approach, implementing viewpoint changes via mouse controls. One interesting variation here is the ability to "specify a momentum" by which the 3-D scene continually rotates. [9]

Other noteworthy researchers in this area, John Stasko and Joseph Wehrli at the Graphics, Visualization and Usability Center at Georgia Tech, have also focused on similar types of visualization as well as dealing with the visualization of algorithms which are inherently three-dimensional. They have created a very impressive 2-D algorithm animation system termed POLKA (Parallel program-focused Object-oriented Low Key Animation) which builds upon experience gained with their previous system TANGO (Transition-Based Animation Generation). [28] Combining path-based methods with frame-based animation clock methods, the system integrated atomic animation primitives in order to visualize parallel activities occurring within algorithms. Their more recent work extends the system to 3-D animation by supplementing graphics toolkit objects such as rectangles and circles with their 3-D counterparts, cubes and spheres. However, they too are still working to alleviate some of the problems related to three-dimensional scene navigation.

"In working with 3-D computation visualizations, we have found one of the most challenging problems to be navigation control, allowing the viewer to adjust the imagery to illuminate a particularly informative angle or projection. As an animation runs, a viewer typically wants to alter his or her view to examine different aspects of the presentation. We have used both dials and scroll bars to support navigation control, but we have been unhappy with each. Another possibility is to preprogram a particular 'fly-by' viewing sequence that might be effective for presenting a computation. We are wary of the loss of interactivity, however." [26]


  1. THE VECTOR-GUIDED VIEW - CONCEPTUAL MODEL
Inherent in many algorithms containing three-dimensional computations (especially rendering algorithms)is the use of vectors. Whether computing particle movement, determining normals to surfaces, or shooting rays into a 3-D scene, vector manipulation is a frequent and important task that many algorithms must perform. Unfortunately, mentally picturing or imagining three-dimensional vectors and how they interact is not easy work. The vector-guided view to help her by keeping track of (and sometimes graphically displaying) the vectors that an algorithm is computing. This view displays these vectors within the context of a graphic representation of the algorithm's data. In the animation of the ray tracer here, this context is a wire-frame view of the scene being rendered. For example, in the ray tracing algorithm, the vector-guided view shows how a ray is projected into a scene and then how it is reflected or refracted by opaque or transparent objects in the scene. Unfortunately, because rays are reflected in many different directions at different times, a single stationary viewpoint would be very limiting and would even hide some vector operations. For instance, if a vector is displayed that points directly toward the user's current viewpoint, all the user sees is a single point. In this case, it would be better for the viewer to be smoothly moved to a new location in the scene, allowing him or her to see more clearly the new vector being displayed. As one can plainly see, this algorithm exemplifies all the problems outlined in the previous section. With this in mind, we now further define our solution method.

The framework presented here attempts to solve the problem of three-dimensional scene navigation for a large variety of three-dimensional visualizations. As mentioned earlier, our initial experiments with it focus on animating a 3-D rendering algorithm, recursive ray tracing. This algorithm was chosen for two reasons. First, as mentioned above, it requires computations which may be thought of as inherently three-dimensional, thus the necessity for a 3-D visualization is clear. Second, its implementation is straight-forward enough that the application of the model may be illustrated easily without overwhelming the reader with the algorithm's complexities. Before the model is actually defined, it is useful first to gain an understanding of some terminology used here. Specifically, it is necessary to discuss the concept of an "ideal viewpoint".

As used her, the ideal viewpoint is the location within a three-dimensional visualization where all important information may be seen clearly. This is where the user will gain the best perspective, or view, of a three-dimensional visualization and is therefore the most desirable location from which to view the 3-D data. The mere nature of this definition makes it a very subjective term, since choices now need to be made about where important information resides in a scene. Information one person deems important may seem trivial to another. Indeed, there are very few absolute right or wrong answers. To complicate things further, even if conclusions can be made about where vital information is located, it is, again, a non-exact science to derive where an ideal viewpoint exists such that all of this important information is easily seen. For these reasons, the formulation of an ideal view point must be entrusted to the algorithm's animation designer in hopes that reasonable (although possibly no perfect) choices will be made. As algorithm animation system designers, it is our job to provide tools which make those choices as effortless and as easy to implement as possible.

The vector-guided view is an approach which allows the algorithm animator to produce dynamic ideal (or at least nearly ideal) viewpoints of a three-dimensional computation visualization. Thus as an algorithm executes, a symbolic 3-D representation is created and altered dynamically. Concurrently, as the scene changes, the user is smoothly guided to new viewpoints where important information is best seen. As stated above, these new viewpoints, while definitely useful and informative, may not be absolutely perfect. For this reason, it is not suggested that user controls for the scene's viewpoint be completely abandoned. One may consider these viewpoint as "best guess" starting points to view a computation visualization. The creation of this type of view basically involves four steps.

Four step methodology for vector-guided view:

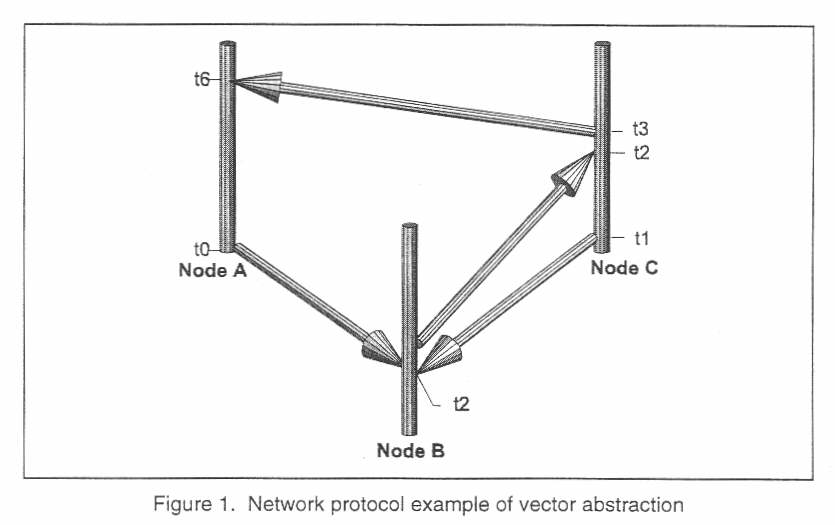

  1. Abstract vectors - Extract a sequence of vectors Vi such that i is the index of the vector extracted (indirectly or directly) from the algorithm being animated or visualized. In the case of a ray tracer, the vectors extracted are vectors that were computed directly within the algorithm. However, this is not a requirement for vector-guided view visualization in general. Many times it is possible to artificially (or synthetically) abstract vectors from an algorithm. For example, the visualization of a network protocol may involve five nodes (for instance). If these five nodes are artificially assigned vertical timelines in 3-D space, communication between nodes may be represented (or visualized) using vectors which connect various nodes' timelines (see Fig. 1). Note, we are using vectors as a visualization technique despite the fact that nowhere in the algorithm are these vectors being directly computed. Although the resulting visualization is somewhat synthetic in nature, it still may be quite useful. [5] It should also be mentioned that there is no requirement that the abstracted vectors be displayed within the visualization. In fact, in certain situations it may prove useful to use these vectors for the sole purpose of deriving viewpoints since displaying the vectors in certain cases may only confuse or clutter the display.

    2.






  2. Define constraints - Define a sequence of one or more constraints, Cj, (using one or more of the Vi) on the viewpoints that will be calculated. Again, in the of symbolically viewing the operations of a recursive ray tracer, one possible constraint could specify that the current viewpoint, Ek, always be orthogonal to both the current projected ray, Vk, and the intersected surface normal vector and/or reflected ray, Vk+n (where k+n is the index of the vector spawned by a reflection of Vk from an object). In fact this, with the additional constraint that the current viewpoint never differ by more than 90 degrees from the scene's up vector, were two constraints used here to animate the ray tracer visualization. The second constraint was added so that the scene was never viewed from underneath, since this could have been disorienting to the viewer. One other constraint specified was that the full length of the current projected ray should be completely visible in the display window. This, in most cases, just required an increase/decrease in the view distance (or a "zoom out"/"zoom in") so that the vector was not clipped by the view volume. While all of these particular constraints only require information obtained from two or three vectors at most, it is possible to produce viewpoints which depend on a considerably larger quantity of vectors.

    3.





  3. Derive viewpoints - Derive and save the sequence of calculated viewpoints (or eye points), Ek, (such that for each Ek, all Cj hold true for all Vi) so that they may be traversed or used in any order. In addition, save all associated vectors, Vi, so that they may be displayed if desired. Note, in some instances, even with all given constraints applied, several choices for a single Ek may still exist. In these cases, a heuristic is used (this may be thought of an additional pre-defined constraint) which chooses the Ek that is closest to the previous Ek in the sequence. This serves to eliminate, when possible, large rotations of the visualization scene which can become "dizzying" to the viewer. The minimization of these large rotations may also be accomplished, in many cases, simply by a careful formulation of the constraints. In cases where multiple derived viewpoints for a singe Ek severely conflict (e.g., differ by more then 90 degrees), we are considering having the vector-guided view spawn additional views and thus concurrently present the scene from these different viewpoints.

    4.
  4. Define additional translation parameters - Define additional parameters (or constraints) which will facilitate the desired type of automatic smooth transition between calculated viewpoints. The benefits of an incremental display versus discrete views, have been argued by many researchers. For this reason, the ability to provide smooth transitions between viewpoints was deemed an important feature to be included within this model. Initial experiments with the framework have used simple linear transitions from one viewpoint to another. However, it may prove useful to change different parameters of the viewpoint (e.g., camera or eye point) at different speeds. For example, zooming in or out more quickly at the beginning of a transition (before the view angle has been significantly altered) could perhaps yield some benefit. There may, in fact, be some functions (exponential, spline, or others) that give particularly pleasing transitions. However, this depends on the algorithm being animated and most likely requires research into the area of human perception, which is beyond the scope of this paper. In any case, we do offer the capability of precisely specifying how one wishes a transition to occur. Once these parameters are set, the system considers the current animation speed and computes the necessary number of frames required to generate a smooth transition.
Transparency: One final feature added to this framework was the use of transparency. This was added to reduce conflicts when attempting to alleviate all three categories of 3-D visualization problems outlined in Section 2. Conflicts arise, for example, when trying to lessen conditions one and three (limited perception of movement and view scale inadequacy). If these conditions are reduced (for example, by placing the viewer orthogonal to movement in the scene and at an appropriate viewing distance), it is still possible for problems of the second category (3-D object interference) to arise. In effect, we can have a good viewpoint except that other 3-D objects or parts of objects are still obscuring important information in the scene. In this case, the interfering objects are made partially transparent to allow a clear view of what is occurring behind them while still indicating their presence in the scene or computation. This feature is attained by assigning and maintaining priorities for all objects present in a visualization. A higher priority indicates that an object should not be made transparent. These priorities can be maintained explicitly or automatically by the system. Currently, automatic maintenance is achieved by keeping track of which objects the current vectors are interacting with or associated with (i.e., touching or indicating movement). Those objects then have their priority raised above a predefined threshold. All objects obscuring the current vector operation and having priorities below the threshold are then made partially transparent. This scenario has worked well in preliminary test cases which have only involved simple convex objects. However, problems will occur when the objects in the scene become more complex and contain concavities. In these instances, when the concavities of an object obscure important information, we plan on making part of all of the given object partially transparent.

  1. IMPLEMENTATION AND APPLICATION
The framework outlined above was implemented on top of a prototype algorithm animation system under development here. This prototype system was written in C and created to run under Microsoft Windows TM version 3.1 and later on IBM PC compatibles. This particular platform was selected primarily for its low cost and familiar user interface. Currently, a 486/66 DX with 8MB RAM and local bus graphics is more than adequate to support the system with reasonable animation speeds. Similar to AACE's user interface, tape deck type controls are the primary user interface for the system. It was felt that this offered a familiar yet flexible way to control the animations. The system supports algorithm execution in forward or reverse (roll-back mode) by utilizing temporary event log files. It is primarily an event-based system similar but not identical to systems such as BALSA[3]. To create a system specifically tailored to visualize computer graphics rendering algorithms was our original objective. However, after additional consideration, its use as a general purpose algorithm animation system is now also being explored. A full length description and specification of the system and its uniqueness is too lengthy to include here, but this information will hopefully be made available in a future publication. For now, just a few more brief highlights will be given.

In addition to displaying the vector-guided view, the system can also maintain several other views, including textual and actual views. In the ray tracing animation created here, a text view is used to display source code and highlight lines as they are executed. An actual view maintains any output that the algorithm is writing to the screen or graphics display. This view was built to display any graphics calls (putting pixels, drawing lines, etc.) made within the algorithm. Additionally, the view maintains an intelligent infinite undo feature to permit roll-back or reverse execution of the program. Unlike some paint programs, this undo feature replaces only the pixels that were altered by the specified graphics calls and does not require that the entire view be redrawn. This feature was needed to allow reverse execution at reasonable speeds.

All constraints and parameters for the vector-guided view were specified and coded in C, although this is soon to change. The visual programming of these constraints is a subject currently being investigated. The input vectors needed by the view are collected by or passed to the system via vector-guided view events transparently specified in the algorithm's source code. It is also necessary that new viewpoints be formulated ahead of time so that smooth transitions may be scheduled and initiated before displaying the next ideal viewpoint. Furthermore, certain constraints may require knowledge of abstracted vectors that will follow the ones currently being processed. For these reasons, it is necessary to internally run the algorithm ahead of the animation being displayed. This "look ahead" type of execution is completely unperceived by the user viewing the animation.

The vector-guided view events, which may be thought of as records sent to the vector-guided view during algorithm execution and used to animate the ray tracer, were classified into five categories:

  1. Eye-ray events - One of these events is given to the vector-guided view every time a new ray (vector) is calculated and projected from the eye-point into the 3-D scene (through the view plane). It contains or stores the normalized value of this ray (vector).
  2. Intersection point events - One of these events is given to the view when the closest intersection point of a ray is found (i.e., the ray hits an object in the scene). It stores the location (in 3-D space) of the intersection.
  3. Normal-vector events - This event informs the view that a surface normal has just been computed. It stores the normalized value of this surface normal.
  4. Reflected or transparent ray events - These events indicate that a reflection or transparency ray (vector) has been projected from an object within the scene. This occurs if the object is reflective or transparent. It stores the normalized value of this ray (vector).
  5. Backtrack events - These events indicate when a projected ray has not intersected any objects in the scene, thus one level of recursion is ended. They do not store any 3-D or vector information.

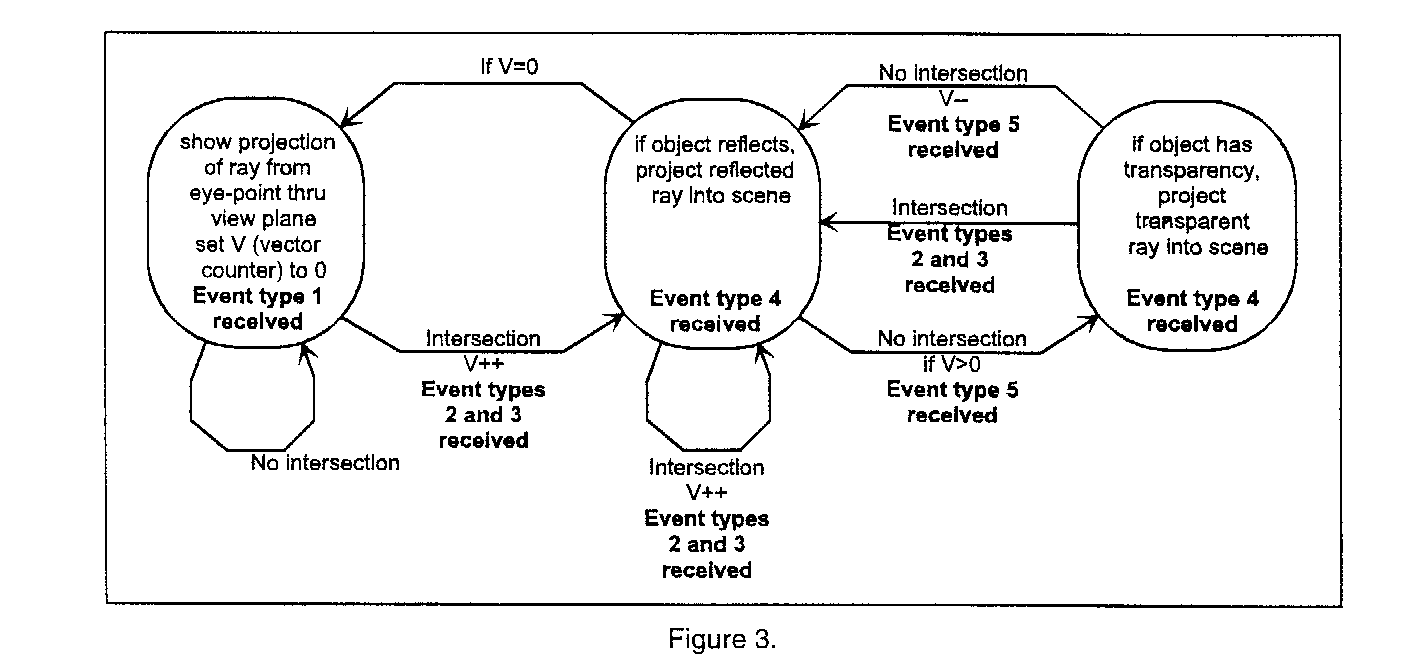

    6. The following diagram (Fig. 3) shows these events are generated by the algorithm and accepted by the system.

    One purpose of this ray-tracer visualization is to explain how effects such as reflection and transparency are created in a ray-traced scene. The results of the vector-guided view here may be summarized as follows. An initial viewpoint is specified to be coincident with the rendered scene's camera position. Thus, initially one sees a wire-frame view of the scene exactly as it is to be rendered. Then, a ray is projected from the scene's camera or eye position. This is pictured in the vector-guided view as a line segment slowly growing (getting longer) from the scene's view plane into the actual 3-D scene. Concurrent with this projection, the vector-guided view is automatically rotating and zooming out so that one may more clearly see this projection (or growth of the line segment). If an intersection occurs and additional rays must be projected, they are represented in a similar fashion and the view's rotation continues in order to yield better perspectives. As levels of recursion are reduced, their associated vector projections are gradually collapsed and the sequence of ideal viewpoints is traversed in reverse back to the initial wire-frame vies. Additionally surface normals (when computed) are displayed in red, reflection vectors are white, and transparent vectors are represented in green. All projections and displays are, of course, synchronized. For example, only when a vector is shown being computed in the source code is it then actually symbolically displayed in the vector-guided view window.

    The actual ray-tracing program being visualized was written C an taken from an article by Roman Kuchkuda[16]. It has only been modified to write pixels to the screen (instead of to a file).

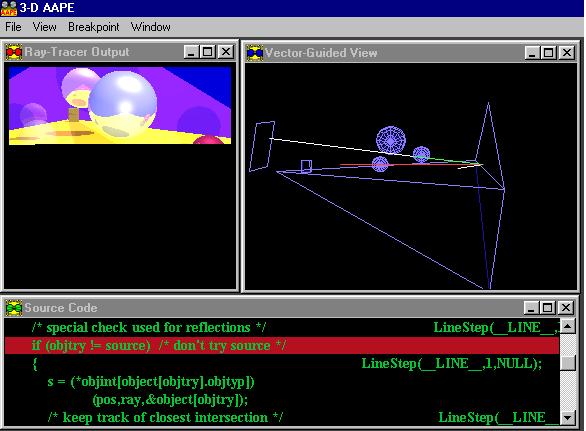

    Figure 4. 3D-AAPE prototype screen.

    An animation of a simple ray tracer is shown above. The actual view of what the algorithm would display if it were executed outside the system is shown on the top left. On the top right is the vector-guided view showing an eye ray being reflected from the back plane in the scene. On the bottom, the current section of source code that has just executed is displayed.


  6. CONCLUSIONS AND FUTURE WORK
Algorithm animation systems have made considerable progress over the past ten years. Advancing from simple two-dimensional black and white graphics displays to high performance three-dimensional color animations, the field has matured considerably. However, with these new advances have come new difficulties. The problem of three-dimensional scene navigation is one such difficulty. The vector-guided view is one possible solution to this problem, allowing three-dimensional animations to be navigated automatically. Furthermore, the consistent event-based framework of the 3D-AAPE prototype should allow new types of views to be added easily.

Three-dimensional graphics rendering algorithms are one subset of sophisticated programs that unfortunately have not been given much attention in the fields of algorithm animation or computation visualization. The 3D-AAPE prototype and vector-guided view will hopefully change this by giving a means by which one may successfully animate this category of algorithms.

Future work: Updating the prototype system to a full-blown algorithm animation system implementing some additional features, not mentioned here previously, is of the highest priority. This includes adding to the system such features as a pre-processor and a visual programming tool set. The benefits of implementing parts of the system in C++ rather than C are also being examined. Upon completion of the next version, the system will then be used to create a variety of animation for graphics algorithms other than ray tracing. Also, new types of three-dimensional views will be explored.

After we have used the system to animate a larger variety of rendering algorithms, it is hoped that the framework may be expanded and prove useful when animating other types of algorithms. Extensions allowing for the simulation of parallel computations are also a possibility. The ultimate goal will be to produce a general-purpose system well suited to animate a large and diverse variety of algorithms. Undoubtedly a system such as this could aid both researchers and educators alike, being useful as bot a debugging and analysis tool, as well as a tool for education.
