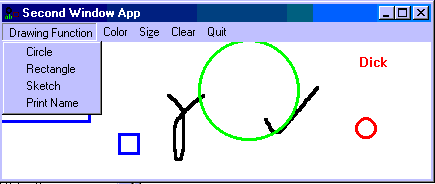

Visual C++ Workshop Some Suggested Programming Exercises R. Eckert 1. Winapp2 Modifications-- Modify winapp2 by adding any or all of the following features: menu items: "rectangle", "circle": drawn at cursor when mouse button pressed "sketch": button down==>button down starts sketching, up stops "display name": button down==>write your name at cursor "size": provide popup menu with "big", "medium", "small" detemine size of rectangle or circle drawn "color": provide popup menu with "red", "green", "blue" determine color of objects drawn2. Move a bitmap-- Use one or more scroll bars to position a bitmap in response to user pressing a "Move" button
3. App with a dialog box that asks for and retrieves student names-- Dialog box should contain: "Student Name" edit control for user to enter names "Name List" List box control to contain the list of names entered "Add" button pressed when user has entered a new name "Done" button to terminate execution Could be made into a complete student grade-keeping application

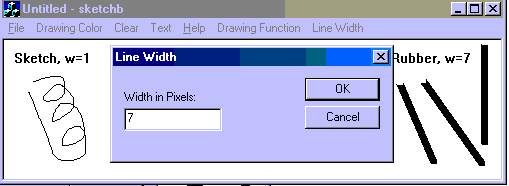

4. Add rubberband line and line width functionality to MFC Sketch app-- New menu items: "Rubberband line": allows user to draw rubberband lines "Line width": brings up dialog box with line width edit control subsequent sketches/lines will use the new line width

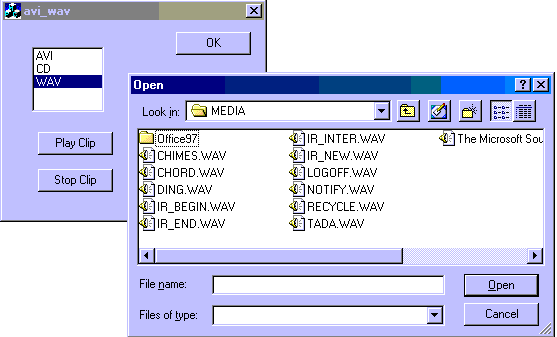

5. MFC Audio CD / AVI Movie / Digital Sound player-- A dialog-based app with following controls: Listbox with "AVI", "CD", "WAV" choices "CD" selection==>audio CD playing is selected "WAV" ==> wave file playing is selected "AVI"==>AVI video movie playing is selected "Play" and "Stop" buttons "Play" pressed==> "WAV" & "AVI"==>Common File Dlg box, selected file played "CD"==>Audio CD in CD-ROM is played "Stop" pressed==>playing stops & device is closed "OK" button to terminate
