VC++ Workshop
Session 4
R. Eckert
CHILD WINDOW CONTROLS
Child window controls--windows with the following characteristics:
Apps use them in conjunction with another window: the parent
Normally used for simple I/O tasks
Let user choose commands, view status, view/edit text, etc.
Properties, appearance, behavior determined by predefined class definitions
But behavior can be customized
Allow an app to easily set up child windows for common objects:
Buttons, scroll bars, etc.
Allow user to display and select information in standard ways
Windows Environment does most of work in:
Painting/updating a Control's screen area
Determining what user is doing
Often used as input devices for parent window
Constitute the "working components" of dialog boxes
Windows environment contains each control's WinProc()
Messages to child windows are processed in a predefined way
Programmer doesn't have to worry about it
Main window communicates with controls by sending/receiving messages
Six “standard” control types:
-Static Text
-Button
-Edit Control
-List Box
-Combo Box
-Scroll Bar
All are windows
Windows Environment automatically repaints Control upon exposure
Example: WordPad ("File"|"Open") -- has most “standard” controls
There are 17 other predefined "Common Controls" (See Petzold, Ch. 12)
Supported by COMCTL32.DLL library
Some important ones:
Toolbars, Tooltips, Status Bar, Tree View, List View, Image List,
Progress Bar, Rich Edit, Up-Down Spin control
Predefined Control Class names:
STATIC-
Primarily to display text
Can also display icon images and rectangles
Automatically redrawn if exposed
Often used as labels for other controls
BUTTON-
“Clicked” by user to indicate desired actions or choices made
Lots of different styles (e.g., check, radio, group)
Typically notify parent window when user chooses the button
EDIT-
To enter/view/edit/delete text
Single or multiline control
Lots of word processing capability
LISTBOX-
Contains lists of items that can be selected
Entire list is shown
User selects items
COMBOBOX-
Static text box or edit box combined with a list box
List box can be displayed at all times or pulled down
If combo box has a static text box, it displays list box selection
If it uses an edit box, user can type in desired selection
List box highlights first item (if any) matching user entry
User selects highlighted item to complete choice
SCROLLBAR-
Lets user choose direction/distance to move a “thumb”; Two types:
1. Control attached to edge of a parent window
Allows user to "scroll" info in parent window's client area
2. Stand-alone child window control
Allows user to enter/change an integer by moving scroll bar "thumb"
Creating Child Window Controls--
CreateWindow()-For any kind of window, including a control
1st parameter: Predefined control class name-
"STATIC", "BUTTON", “EDIT”, ”LISTBOX”,
”COMBOBOX”, ”SCROLLBAR”,
or common control class names (see online help on CreateWindow)
2nd parameter: Name of the window-
BUTTON, EDIT, STATIC classes text in center of control
COMBOBOX, LISTBOX, SCROLLBARignored (use "")
3rd parameter: Window style-
WS_, SS_, BS_, ES_, LBS_, CBS_, SBS_ (see CreateWindow help)
Several styles can be combined with the bitwise OR operator (|)
All controls should include WS_CHILD style
4th & 5th parameters: X,Y position-
Relative to upper left corner of parent window client area
6th & 7th parameters: Width & Height
8th parameter: Handle to parent window
9th parameter: Handle to menu (hMenu)-
User interacts with controlWM_COMMAND message
Usually used to identify menu items--
But controls don't have menus
hMenu holds integer ID value for the control
Allows program to identify which control was activated
10th parameter: Handle to instance of program creating control
GetWindowLong() can be used to get this value
11th parameter: Normally NULL
STATIC Example App: displays 3 static controls (text, icon, rectangle)--
Text static control displays "This is static text"
Icon static control displays the program icon (from resources)
Rectangle static control displays a gray rectangle
Menu items: "Change Title", "Send Message", "Quit"
User clicks "Change Title"
Text static control changes to "New Text via SetWindowText()"
User clicks "Send Message"
Text static control changes to "New Text via SendMessage()"
Each is a child window control created with CreateWindow()
Static control styles set in call to CreateWindow()
(See online help on static control styles: SS_)
Next-to-last-parameter: instance handle to creating app
Three ways to get instance handle (each illustrated in STATIC.CPP):
1. GetWindowLong(hWnd, nOffset)-
2. Use a global variable set to hInstance after creating main window in WinMain()
3. WM_CREATE message
lParam points to CREATESTRUCT that has an hInstance member
So cast lParam to a long pointer to that type of structure:
CreateWindow(..., ((LPCREATESTRUCT)lParam->hInstance,… );
Sending a Message to a Child Window Control--
SendMessage()--sends message to a window’s WinProc()
Doesn't return until message has been processed
Parameters:
Handle of destination window
ID of message to send
wParam and lParam values containing message data, if any
Example from STATIC App:
SendMessage (hStaticText, WM_SETTEXT, 0,
(LPARAM)"New Text Via SendMessage().") ;
Here message is WM_SETTEXT, sent to static control
When received, static control's WndProc() changes control’s text string
wParam must be 0
lParam points to text string to be displayed
Another Way of Sending Text to a Window or Control-
SetWindowText();
Invokes SendMessage(), ID=WM_SETTEXT
Specified text displayed in specified window or control.
For a main window, sets window's title to specified text
For static control, text is changed
Parameters:
Handle to window to display text
Pointer to string to be displayed
STATIC.CPP uses both methods in response to user menu choices
In STATIC example, text sent is a string
Could use wsprintf() to generate a formatted text string for integer & other data:
wsprintf(cBuf, format string, values);
Then to send the formatted string to a control, call:
SendMessage(hControl, WM_SETTEXT, 0, (LPARAM)cBuf);
<See STATIC1 Example--outputs a new number each time menu item selected>
A Related message-sending function: PostMessage();-
Places (posts) a message in window's message queue
Returns immediately
Could have been used here
Messages can be retrieved with GetMessage() or PeekMessage();
Getting Text Stored in a Static Control--
SendMessage(hControl, WM_GETTEXT, nCnt, cBuf);
Or, equivalently
GetWindowText(hControl, cBuf, nCnt);
BUTTON CONTROLS--
Little windows that can be clicked by user
Indicate actions to be taken or choices made
Lots of different styles:
Check--box with check, unchecked, grayed
Radio--round button, on or off, only one on if in group
Group--a box that groups other buttons
Pushbutton--has text, usually initiates some action when selected
Typically buttons notify parent window when user chooses them
Button Styles when creating CreateWindow(): Any BS_ values
(See online help at end of CreateWindow listing)
WM_COMMAND message details for buttons--
User interacts with the button (or other control)
WM_COMMAND message sent to parent window
LOWORD(wParam) = buttonID (hMenu value when created)
lParam = handle to button's window
HIWORD(wParam) = button notification code (BN_***)
Indicates what the user interaction was
(See on-line help on BN_ )
<Details here have changed from Win16>
Sending Messages to Buttons--
Use SendMessage()
Parameters:
Button window handle
Message ID, e.g.--
BM_GETCHECK
BM_SETCHECK
BM_GETSTATE
BM_SETSTATE
BM_SETSTYLE
lParam: state being set (or 0 for get msgs))
Returns: button status (for get msgs)

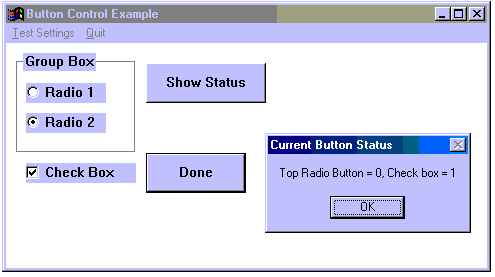

BUTTON.CPP Example program--
Illustrates many button styles:
"Radio1" and "Radio2" radio buttons inside a group box:
Clicking activates button clicked, deactivates other
"Check Box" button:
Clicking cycles between activated, deactivated, grayed states
"Show Status" pushbutton
Clicking brings up message box showing status of radio/check buttons
"Done" pushbutton:
Terminates application
Has menu item "Test Settings"--
Has same effect of "Show Status" pushbutton
MessageBox() -- Produces a child window with a message and a title
Parameters:
Message box’s parent window handle (hWnd)
Pointer to text to be displayed in message box
Pointer to text to appear in message box's title
Message box style--MB_OKcontains an OK push button.
Message box remains on screen until user presses the OK button
(It’s really a simple modal dialog box)
LIST BOX--
Created with CreateWindow() using "LISTBOX" window class
Many possible style parameters (see online help on LBS_)
LBS_NOTIFY or LBS_STANDARDcan send msgs to parent
Program communicates with listbox by sending it messages
Some messages:
LB_RESETCONTENT
LB_ADDSTRING
LB_GETCURSEL
LB_GETTEXT
(See online help on LB_)
User interacts with listbox
WM_COMMAND message
LOWORD(wParam) = listbox ID
lParam = listsbox window handle
HIWORD(wParam) = listbox notification code (what happened)
See on-line help on LBN_ for listbox notification codes
The LISTBOX.CPP Example Program--
Creates an empty listbox
Selecting "Fill Listbox" menu item fills listbox with some strings
Selecting any string in the listboxa message box to display chosen string
COMBO BOX--
Like a list box, but with an edit header control that shows current selection
Can be set up to show only the header style=CBS_DROPDOWN
Takes up less space
Styles--(see on-line help on CBS_)

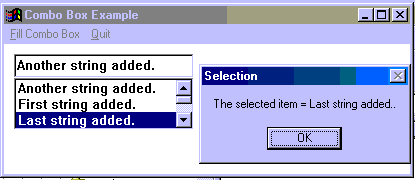

COMBO.CPP Example Program--
Logic is very similar to LISTBOX.CPP, with:
LB replaced by CB
LISTBOX --> COMBOBOX
SCROLLBAR--
Two types of scroll bars:
1. A control attached to the edge of a parent window. It allows the user
to "scroll" the information in the parent window's client area
2. A stand-alone child window control that can allow the user to
enter an integer value by moving the scroll bar "thumb"
User interacts with a scroll bar
WM_HSCROLL or WM_VSCROLL message sent
lParam=scroll bar window handle (stand-alone scrollbars)
lParam=0 (attached scroll bar it is 0)
LOWORD(wParam)=notification code describing user action taken:
SB_LINEUP (up/left arrow pressed)
SB_PAGEUP (scroll area above/left of “thumb” pressed)
SB_LINEDOWN (down/left arrow pressed)
SB_PAGEDOWN (scroll area beneath/right of “thumb pressed)
SB_THUMBTRACK (scroll “thumb” pressed)
SB_THUMBPOSITION (scroll “thumb” released)
For either of these, HIWORD(wParam)=current thumb position
Lots of Scrollbar styles when creating it-See online help on SBS_
Default alignment for attached scroll bar: right side and bottom of window
Some Useful Scrollbar Functions:
GetScrollPos()-- Retrieve current position of thumb
GetScrollRange()-- Retrieve minimum and maximum value range
SetScollPos()-- Set position of thumb
SetScrollRange()-- Set minimum and maximum value range
ShowScrollBar()-- Display scroll bar

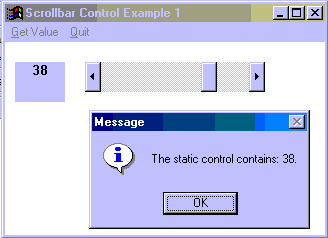

The SCROLL1.CPP Example (a Stand-alone Scrollbar)--
Stand-alone scrollbar allows user to enter an integer value between 0 and 50
Current value is continually displayed in a static control
Message box shows current value when user chooses menu item "Get Value"
Scroll Bars Attached to a Window (The SCROLL2.CPP Example)--
Creates a window with a vertical scroll bar
Puts 3 lines of text in client area
User can scroll through client area using scroll bar
User moves scroll bar
Force a client area repaint and make text appear in correct position
Gives impression that lines moved down
Opposite from how scrolling normally works!
To add scroll bars to the edge of a main window-
WS_HSCROLL or WS_VSCROLL style when creating window:
hWnd = CreateWindow ("MyClass", "Scroll Control Example 2",
WS_OVERLAPPEDWINDOW | WS_VSCROLL,
CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT,
CW_USEDEFAULT,
NULL, NULL, hInstance, NULL) ;
EDIT CONTROLS (for viewing and editing text)--
Current location kept track of with a "carat"--a small vertical line
Backspace, Delete, and arrow keys + highlighting work as expected
Scrolling possible (WS_HSCROLL, WS_VSCROLL styles
NO ability to format text with different fonts, character styles, etc.
Styles of EDIT windows -- See the online help on edit styles
The EDIT1.CPP Example --
Displays a multiline edit control box inside client area
User can enter/delete text in the edit control & scrolling is built in
User clicks "Get Text" menu itemcontents appear in main window
EDIT class child window is created with CreateWindow()
Style: WS_CHILD | ES_MULTILINE | WS_VISIBLE |
ES_AUTOSCROLL | WS_BORDER
Null ("") title string contains no text initially
Text in an edit control stored as one long character string
Carriage return <CR> is stored as ASCII code (0x0D,0x0A)
<CR> inserted automatically if a line doesn’t fit and wraps
NULL character inserted only at end of last line of text
Program communicates with control by sending/receiving messages
User selects menu item "Get Text" (WM_COMMAND, IDM_GET)
1. Send edit control EM_GETLINECOUNT msg to get # of lines stored
2. For each line, send edit control the following messages:
EM_GETLINE to copy line to buffer
EM_LINEINDEX to determine character position of start of next line
EM_LINELENGTH to get length of line
Use TextOut() to display extracted text at next position on client area
Note result of expose events:
Text in main window disappears (not handling WM_PAINT)
Text in Edit control reappears (WM_PAINT handling built in!)
