Visual C++ Workshop
Session 3
R. Eckert
BITMAPS, ANIMATION, AND TIMERS
Bitmap: An Off-screen Canvas--
-Rectangular image that can be created with painting programs
-Data structure that stores a matrix of pixel values in memory
-Pixel value stored determines color of corresponding pixel in image
-Windows supports 4-bit, 8-bit (indirect), 16/24-bit (direct) pixel values
-Can be stored as .bmp files (static resource data)
-Can be edited with paint programs
-Takes up lots of space
-GDI object that must be selected into a Device Context to be used
-Can be thought of as a canvas on a DC upon which drawing takes place
-Must be compatible with output device (video display or printer)
-Can be manipulated invisibly and apart from physical display device
-Can be transferred to/from physical a device-->flicker-free animation
-Doesn't store information on drawing commands (metafiles do that)
-Icons and cursors are small bitmaps
Using Bitmaps--
-Create and save a bitmap using a paint editor --> image.bmp file
-Add to program's resource script, e.g. in .rc file add the line:
IMG BITMAP image.bmp
-Load it from the program's resources:
HBITMAP hBitmap;
HINSTANCE hInstance;
hInstance = (HINSTANCE)GetWindowLong (hWnd, GWL_HINSTANCE);
hBitmap = LoadBitmap (hInstance, "IMG");
GetWindowLong()--
One way of getting instance handle of app containing resources
LoadBitmap()--
Gets bitmap from app's resourceshandle to bitmap
One of many resource-loading functions

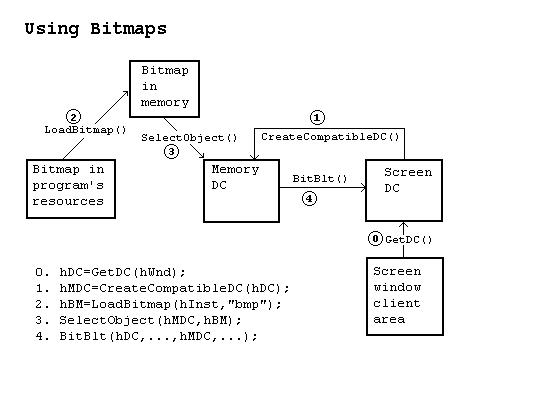

Steps in Displaying a bitmap--
0. Get a DC with GetDC() or BeginPaint() as usual
1. Create a memory device context with CreateCompatibleDC()
2. Load bitmap with LoadBitmap() [or create w/ CreateCompatibleBitmap()]
3. Select bitmap into the memory DC w/ SelectObject()
4. Copy bitmap from memory DC to device DC w/ BitBlt() or StretchBit()
We can say: Bitmap Window Client Area
---------- = --------------------
Memory DC DC
Memory DC--
Like a DC for a physical device, but not tied to the device
Used to access a bitmap rather than a device
Bitmap must be selected into a memory DC before displayable on a device DC
hMemDC=CreateCompatibleDC(hDC)--
Creates a memory DC with same physical attributes as DC of given device
SelectObject(hMemDC,hBitmap) ;
Selects bitmap into the memory DC
BitBlt(hDestinationDC, x, y, w, h, hSrcDC, xsrc, ysrc, dwRop) --
Copies pixels from bitmap selected into source DC to destination DC
x,y -- coordinates of upper lefthand corner of destination rectangle
w,h -- width, height in pixels of rectangle to be copied
xsrc, ysrc -- coordinates of upper lefthand corner of the source bitmap
dwRop -- raster operation for the copy
Raster Ops--
How to combine source pixel colors with current destination pixel colors
Bitwise Boolean operation (AND, NOT, OR, XOR, etc.)
Currently-selected brush pattern also can be combined:
256 different possible combinations (15 named):
Raster Op Boolean Operation
Name S=source bitmap, D=destination bitmap
P=currently-selected pattern (brush)
-----------------------------------------------------
BLACKNESS 0 (all black)
DSTINVERT ~D
MERGECOPY P & S
MERGEPAINT ~S | D
NOTSRCCOPY ~S
NOTSRCERASE ~(S | D)
PATCOPY P
PATINVERT P ^ D
PATPAINT (~S | P) | D
SRCAND S & D
SRCCOPY S
SRCERASE S & ~D
SRCINVERT S ^ D
SRCPAINT S | D
WHITENESS 1 (all white)
StretchBlt(hDestinationDC,x,y,w,h,hSrcDC, xsrc,ysrc,wsrc,hsrc,RasterOp);
Same as BitBlt() except size of copied bitmap can be changed
Both source and destination width and height are specified
See BITMAP1 Example [uses BitBlt() and StretchBlt()]--
PatBlt(hDC, x, y, w, h, dwRop) --
Paints a bit pattern on a specified DC
Combination of currently-selected brush and pattern on destination DC
x,y,w,h: position/size of rectangular area on destination DC
dwRop (raster op): how pattern will be combined with destination pixels
Possible values:
BLACKNESS (0), DSTINVERT (~D),
PATCOPY (P), PATINVERT (P^D), and WHITENESS (1)
Pattern is tiled across specified area

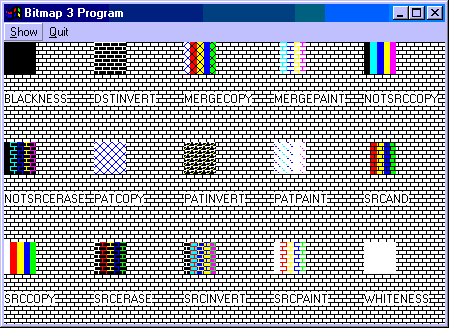

BITMAP3 Example program--
"Blits" a bitmap using all 15 named raster ops:
Source--white, red, yellow, blue, green bands: colors.bmp
Destination--brick pattern of black and white tiles: brikbrsh.bmp
Brush pattern--a blue-on-white diagonal hatched pattern
RasterOp names are displayed below each bitmap
A string table stores raster op names with program's resource data
Alternative to defining strings as static data in program
Makes it easy to make changes
Defining a string table resource (.rc file)--
STRINGTABLE [load option] [memory options]
BEGIN
idNumber "Text String 1"
idNumber "Text String 2"
...
END
Can enter manually or use Developer Studio's String Table Editor
Loading a string from string table--
LoadString(hInstance, idNumber, lpszBuf, cbSizeBuf);
ANIMATED GRAPHICS--
To create a moving picture--
Want to give illusion of motion by continual draw/erase/redraw
But how do we do it without taking over Windows?
Shouldn't allow disruption of other applications
In a DOS application, we could do the following:
while (TRUE)
{
/* exit loop if a key is pressed */
/* erase old object image */
/* compute new location of object */
/* draw object at new location */
}
In Windows:
Other programs can't run while this loop is executing
Need to keep giving control back to Windows so other programs can operate
Especially critical under Windows 3.xx (cooperative multitasking)
One method: Use a PeekMessage() loop instead of a GetMessage() loop.
GetMessage() only returns control if a message is waiting for calling program
PeekMessage() returns (with 0 value) if no active messages are in the system
PeekMessage() loop can take action (redraw image) if PeekMessage() returns 0
PeekMessage() doesn't return zero for WM_QUIT (like GetMessage())
App must explicitly check for a WM_QUIT message to exit the program
PeekMessage(lpMsg, hWnd, uFilterFirst, uFilterLast, wRemove);
-The first 4 parameters are same as GetMessage.
-Last one: specifies whether message should be removed from the Queue.
PeekMessage() message loop will look like:
while (TRUE)
{
if (PeekMessage(&msg, NULL, 0, 0, PM_REMOVE))
{ // non-zero means we must handle msg
if (msg.message == WM_QUIT)
return msg.wParam; // return to Windows if msg is WM_QUIT
else
{
TranslateMessage (&msg);
DispatchMessage (&msg); // dispatch msg to our WndProc()
}
}
else // zero dead time that can be used
{
do some other stuff like drawing the next animation frame
}
}
BALL Example Animation Application (Ball bouncing off walls)--
BALL.H--
Define menu item constants
Define ball constants: (VELOCITY, BALLRAD, MINRAD)
BALL.CPP--
Global variables--
_dDrawOn: on/off switch to toggle animation on or off
_nXSize,_nYSize: window width, height--to determine if ball is inside
(if window is resized, we need to change these)
New Messages--
WM_CREATE:
When window is created (not yet visible)
WM_SIZE message:
Sent anytime window is resized by the user
Vertical/horizontal size of client area encoded in lParam
-Least significant two bytes = horizontal size in pixels
-Most significant two bytes = vertical size
Helper function DrawBall()--
Draws ball in new position for each new frame
DRAWING ON A MEMORY BITMAP (Improving an Animation)
Flicker-
Result of multiple accesses to frame buffer in each frame
Avoid by making one access to frame buffer during each new frame
In Windows do this with off-screen memory bitmaps
Use GDI to “draw” invisibly on a bitmap selected into a memory DC
When done, BitBlt() result to device DC
Very fast & one access to frame buffer
No flicker in animation applications
Getting a blank Bitmap to draw on-
(Alternative to LoadBitmap())
hBitmap = CreateCompatibleBitmap (hDC, w, h);
hDC--handle to device context bitmap is to be compatible with
w,h--width and height of bitmap
Select into a memory DC & use GDI graphics functions to draw on it
All GDI drawing operations now invisible to user
When drawing is all done, BitBlt() it to real device
Animation of a moving object over a stationary background--
Set up an offscreen bitmap and select it into a memory DC
For Each Frame (each time PeekMessage() returns):
Calculate new position of the object(s)
Erase entire off-screen bitmap (or BitBlt() background bitmap to it)
Redraw object(s) (in new positions) on the off-screen bitmap
BitBlt() entire off-screen bitmap to the screen

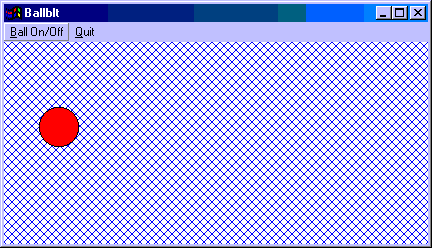

See the BALLBLT example program--
But for large image field, BitBlt() could cover a large area==>slow
Better method:
Compute affected area (rectangle enclosing old & new object position)
BitBlt() to that area only
Sprite-
A little bitmap that moves around on screen
Could restore background and BitBlt() the over it
Problem-
Sprite consists of desired object enclosed in rectangle
Rectangular shape
“Halo” around sprite

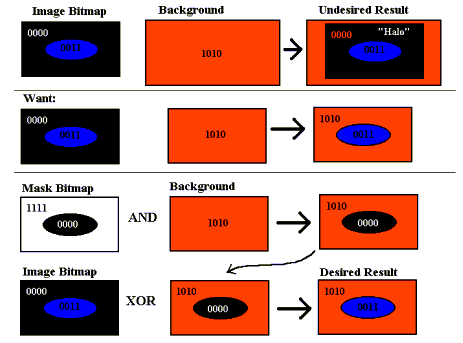

Solution (Sprite Animation)--
1. Set up a "mask bitmap":
Sprite pixels black, rest of enclosing rectangle white
2. BitBlt() this over background using SRCAND (AND) raster op
3. Set up an "image bitmap":
Sprite pixels set to their colors, rest of enclosing rectangle black
4. BitBlt() this to result of step 2 using SRCINVERT (XOR) raster op
Result: sprite moves to new location with surrounding background intact
DEVICE INDEPENDENT BITMAPS (DIB)--
Device Dependent Bitmaps (DDB)-
Type of bitmap considered until now
Same color organization as output device
Only dimensions of display and the pixel values stored
No information on how pixel values are mapped to actual RGB colors
Can have color fidelity loss on device with different color scheme
Device Independent Bitmap (DIB)-
Introduced in Windows 3.0
Includes its own color table
Shows how pixel values map to RGB colors
Can be displayed on any raster output device
Color mapping info in DIB used to convert to nearest device colors
Using a DIB--
Can't be selected into a DC==>no BitBlt()
How do we display it?
1. Convert to a DDB using CreateDIBitmap();
Creates a DDB and returns a handle to it
Can be used as any other DDB (BitBlt(), etc.)
Memory intensive--requires twice the memory
or
2. Use StretchDIBits();
Copies bits directly from a DIB to target DC
Used like StretchBlt(), but with differences (search "StretchDIBits")
MICROSOFT’S DIRECT-X GRAPHICS LIBRARY--
BitBlt() and StretchBlt() are relatively fast
But can’t match direct accesses to frame buffer
Prohibited under standard Windows
Best fast-action game programs had to be written as DOS apps
Microsoft’s Response: Direct-X graphics library--
Permit direct access to the frame buffer…
and to acceleration hardware built into the system's video card
Beyond scope of this workshop
Refer to the references
and my CS-360 notes on DirectX and Windows Game Programming"
(CS-360 link off my home page)
THE WINDOWS TIMER--
An input device that notifies an app when a time interval has elapsed
Application tells Windows the interval
Windows sends WM_TIMER message each time interval elapses
Some Timer Applications--
Keeping time (clock programs)-
Not precise
Waking up
Multitasking-
Divide job up into smaller pieces
Process each piece on receipt of timer message
Maintaining an updated status report
Autosave feature
Pacing movement-
Timer messages can trigger next animation frame
No inconsistencies from variations in processor speed
Activation of a screen saver after a certain period of time
Terminating demonstration versions of programs
Timer message signals when time is up
Multimedia-
Use a timer to coordinate audio/visual information
Using a Timer--
Allocate and set a timer with:
SetTimer(hWnd, timerID, Timeout, f_address);
Parameters:
hWnd of window to receive timer message
If last parameter is NULL, window's WndProc() receives msgs
Timer id (UINT);
Timeout duration (UINT): msec interval between WM_TIMER msgs
TimerProc: address of procedure that will receive/process timer msgs
(a "callback" function)
Possible Return Values (UINT):
Identifier of new timer if 2nd argument was NULL & call was OK
Zero if unsuccessful
From then on, system repeatedly generates WM_TIMER messages
Timer resets itself each time it times out
WM_TIMER message: wParam = Timer ID, lParam = 0.
KillTimer(hWnd, timerID);
Stops timer messages and removes timer from system
App should call this when done using timer
Make sure all timers are killed prior to program termination
Checking if timer was allocated successfully-
Finite number of timers available
If none available, app could put up a Message Box
Advise user to close other apps that may be using timers:
while (!SetTimer(hWnd, 1, 1000, NULL))
if (IDCANCEL ==
MessageBox(hwnd,
"Too many timers!",
"Program Name",
MB_ICONEXCLAMATION|MB_RETRYCANCEL) )
return FALSE; /* return if user hits “Cancel” */
How does a timer work?
-Windows redirects PC’s 8253/54 hardware timer interrupt (INT 8)
Occurs every 54.925 msec. (18.2 times a second)
-Windows handler decrements counters for all set timers
-When counter reaches 0, WM_TIMER msgapp's queue & timer reset
Resolution is that of PC timer (18.2 times per second)
WM_TIMER messages can't be generated any faster
WM_TIMER messages are low priority (like WM_PAINT)
If other apps are busy, pgm may not get WM_TIMER msgs at right time
Put on pgm's queue, but until pgm regains control, it won't receive them
WM_TIMER Message may not be received at all-
Moving/resizing window "modal message loop":
Windows prevents interference
Traps messages with internal loop
Discarded and don't make it to the pgm's message loop
So, don’t use timers for precision timekeeping!
BEEPER1 Example (Petzold)--Beeps and changes colors every second
Resize/MoveBeeping stops!
Timers in Animation-
Use as alternative to PeekMessage() loop
Timer message triggers generation of next frame
Animation will run at same speed on all machines
BALLTIME Example (like BALL; uses Timer instead of PeekMessage())--
Callbacks: Alternative Way of Using Timer-
Callback Function--
Function in our program called by Windows
Give Windows info on location of callback function
Windows calls it when required:
For timer callback, when WM_TIMER message received
Sort of like the WndProc()
Must be of type CALLBACK
Parameters & return value depend on purpose of callback
Also used with dialog boxes
For timer callback, parameters are same as for the WndProc():
VOID CALLBACK TimerProc(HWND hWnd, UINT message,
WPARAM wParam, LPARAM lParam);
HWnd: handle to window specified when SetTimer() called
Message: always WM_TIMER
wParam: timer ID
lParam: current system time
If used, it should do processing of WM_TIMER messages
Must tell Windows where this function is:
Do so in 4th parameter of SetTimer()
Just the address (name) of the timer callback function
Under Windows 3.xx, it was much more complicated
Example: Set timer #2 for 50 msecs & use the callback TimerProc()--
SetTimer (hWnd,2, 50, (TIMERPROC) TimerProc);
BEEPER2 (Petzold)--An example of using a timer callback function
PERFORMANCE MONITOR COUNTERS-
High-resolution timers
Provide most accurate time measurement possible in system
Used in apps where precise time measurement is important, e.g.:
Scientific measurements
Musical interval timings
Game interactions
Performance monitoring of code execution
QueryPerformanceCounter(*pmilliseconds)-
Current performance counter value returned in *pmilliseconds, 64-bit precision
Returns FALSE if system has a high-resolution timer, TRUE if not
See online help for details
Getting Absolute Time Information-
Use C library functions time() and localtime()
MFC provided CTime class
See on-line help for details
